Description：

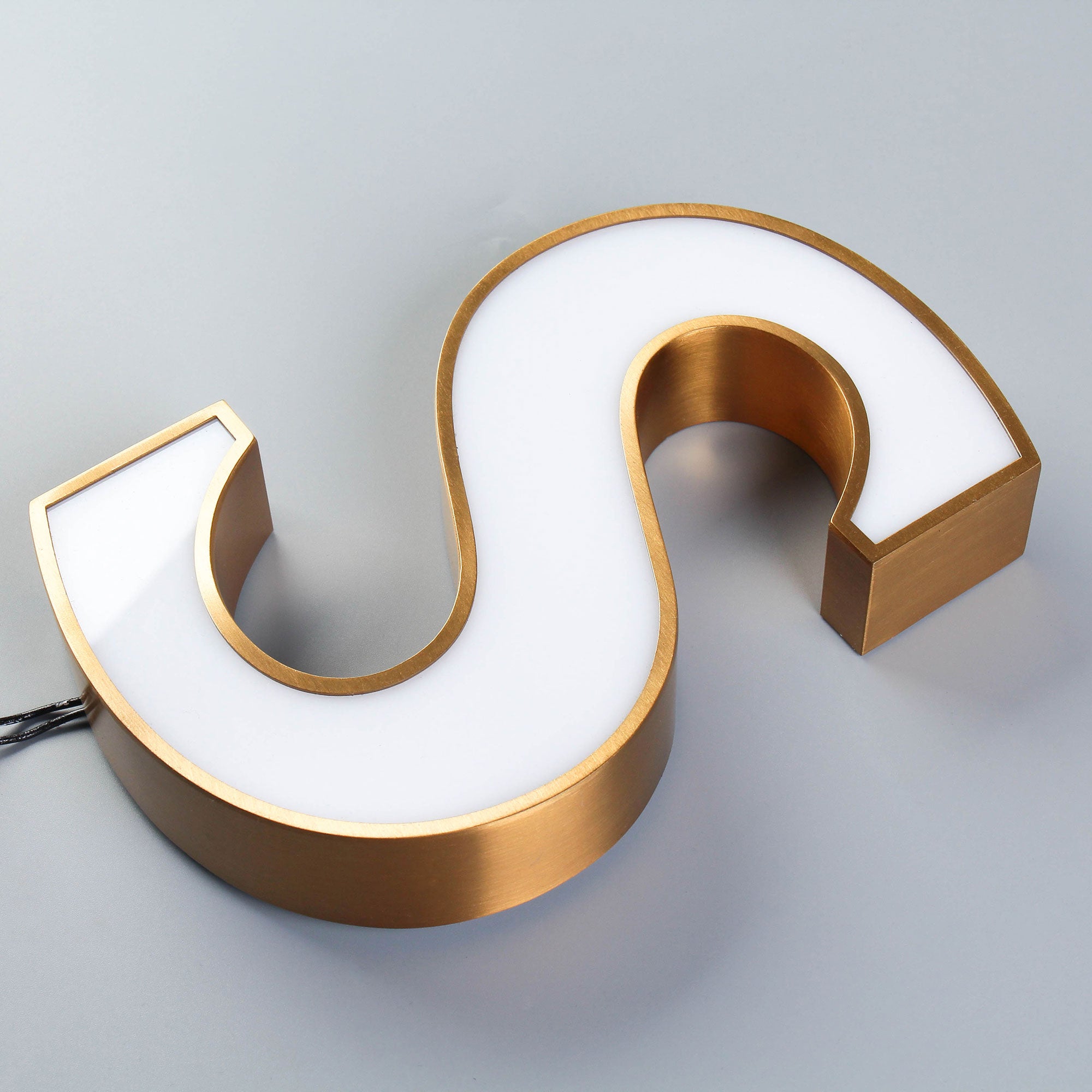

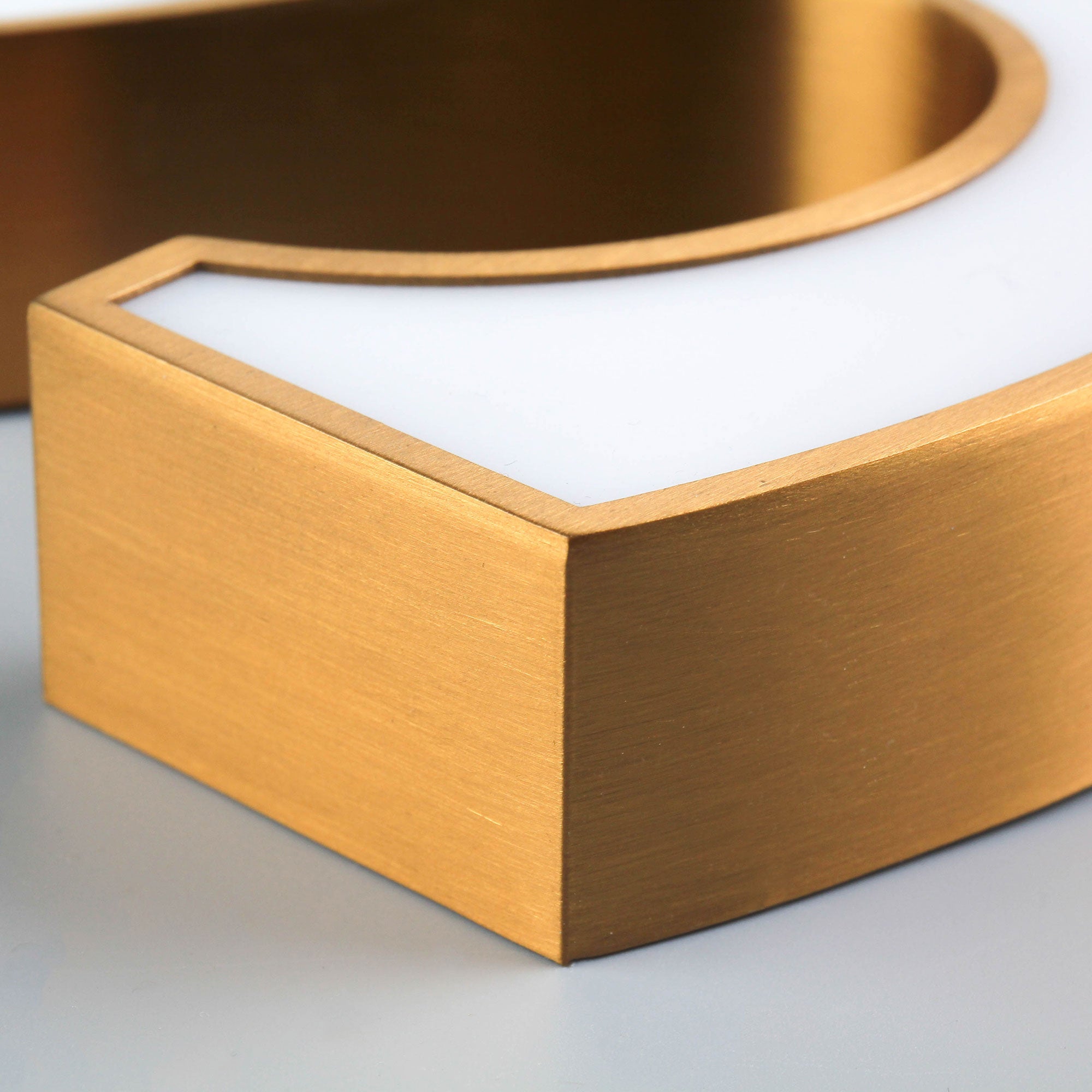

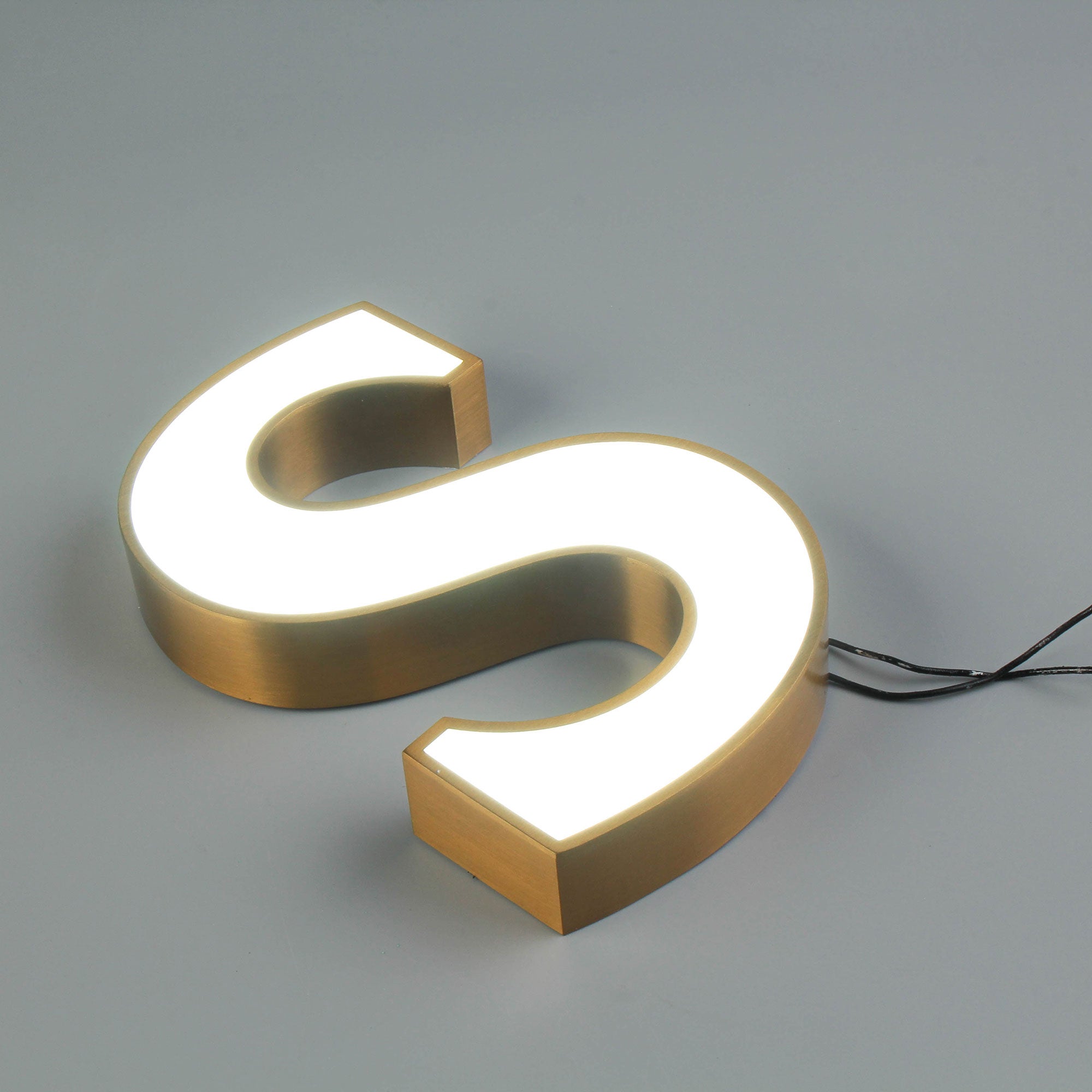

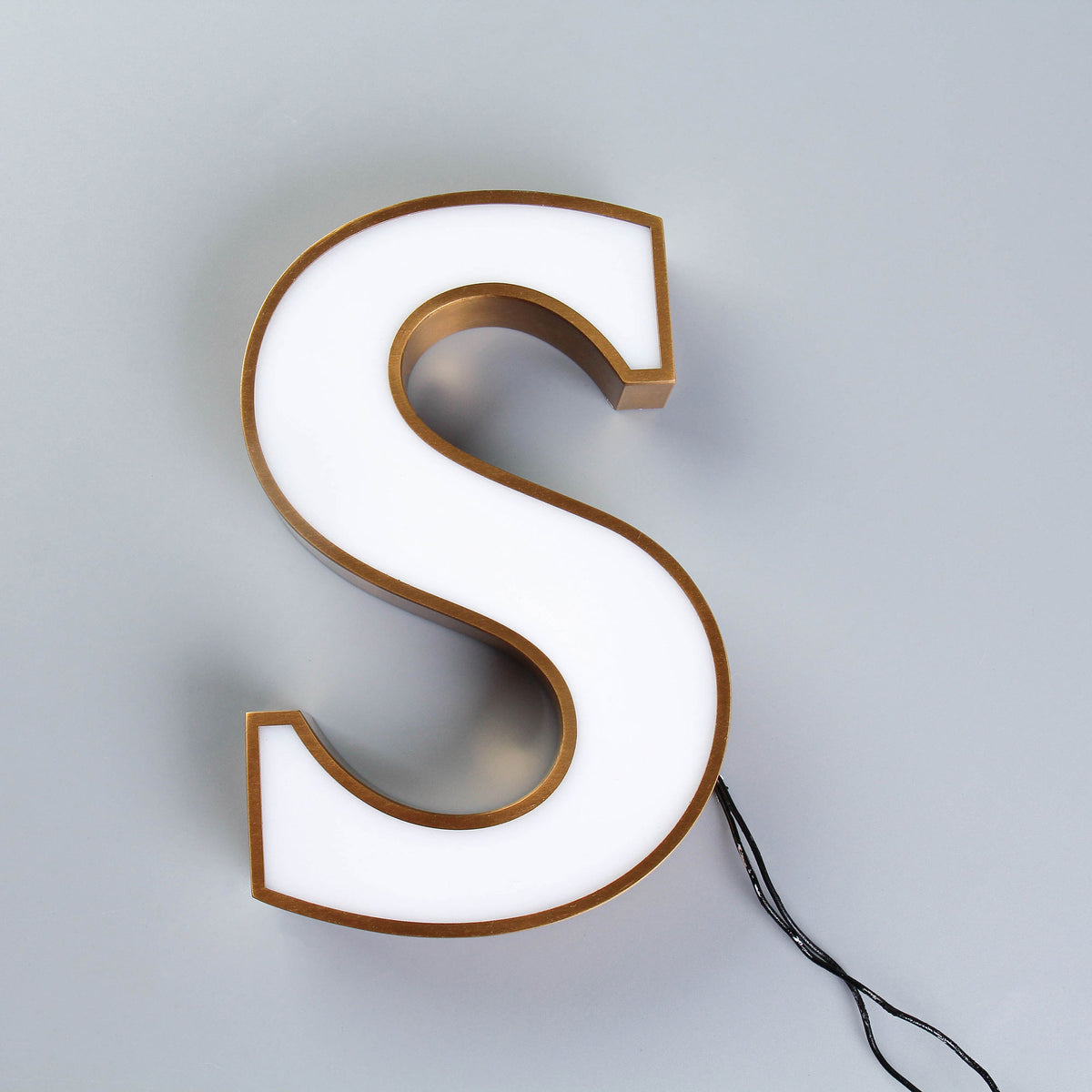

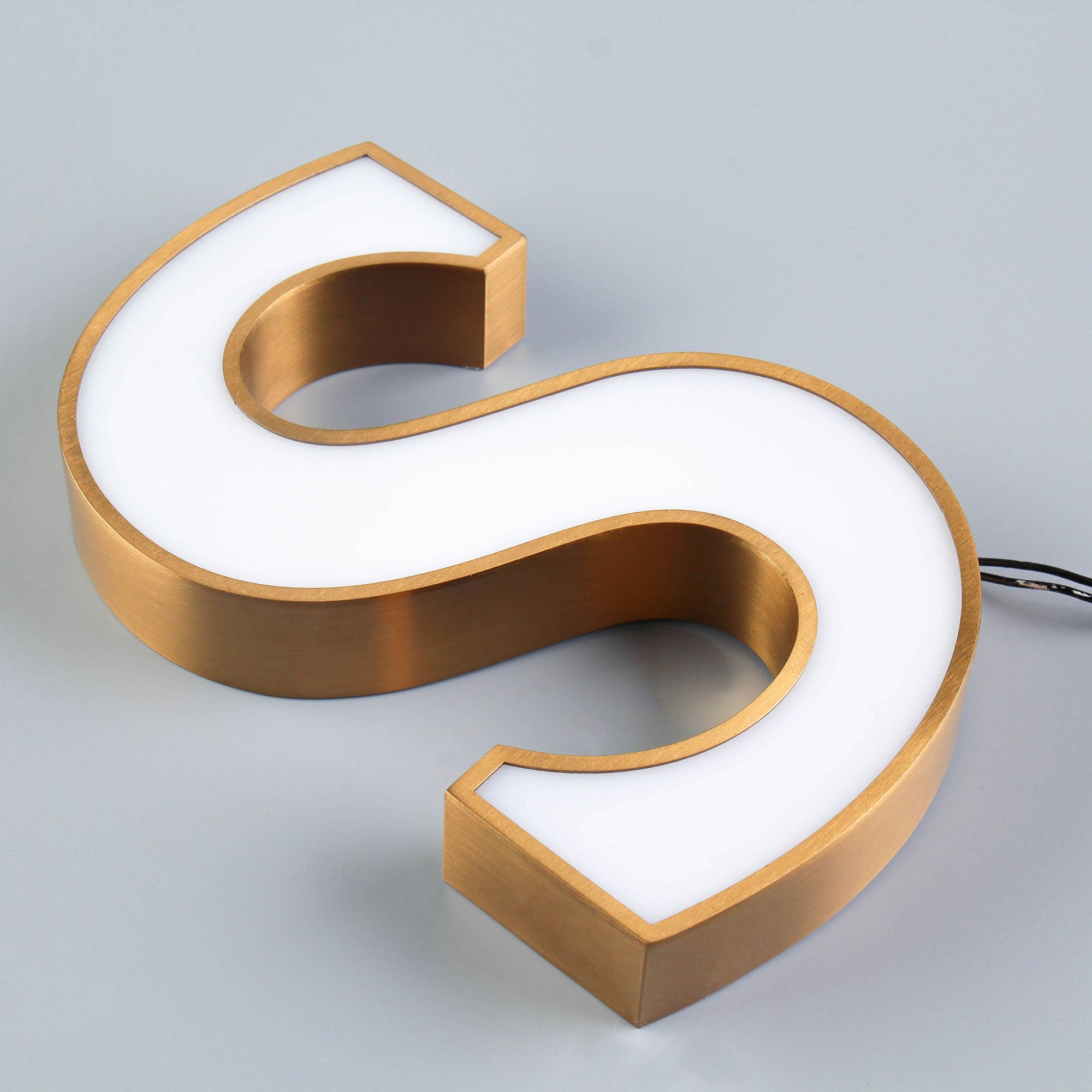

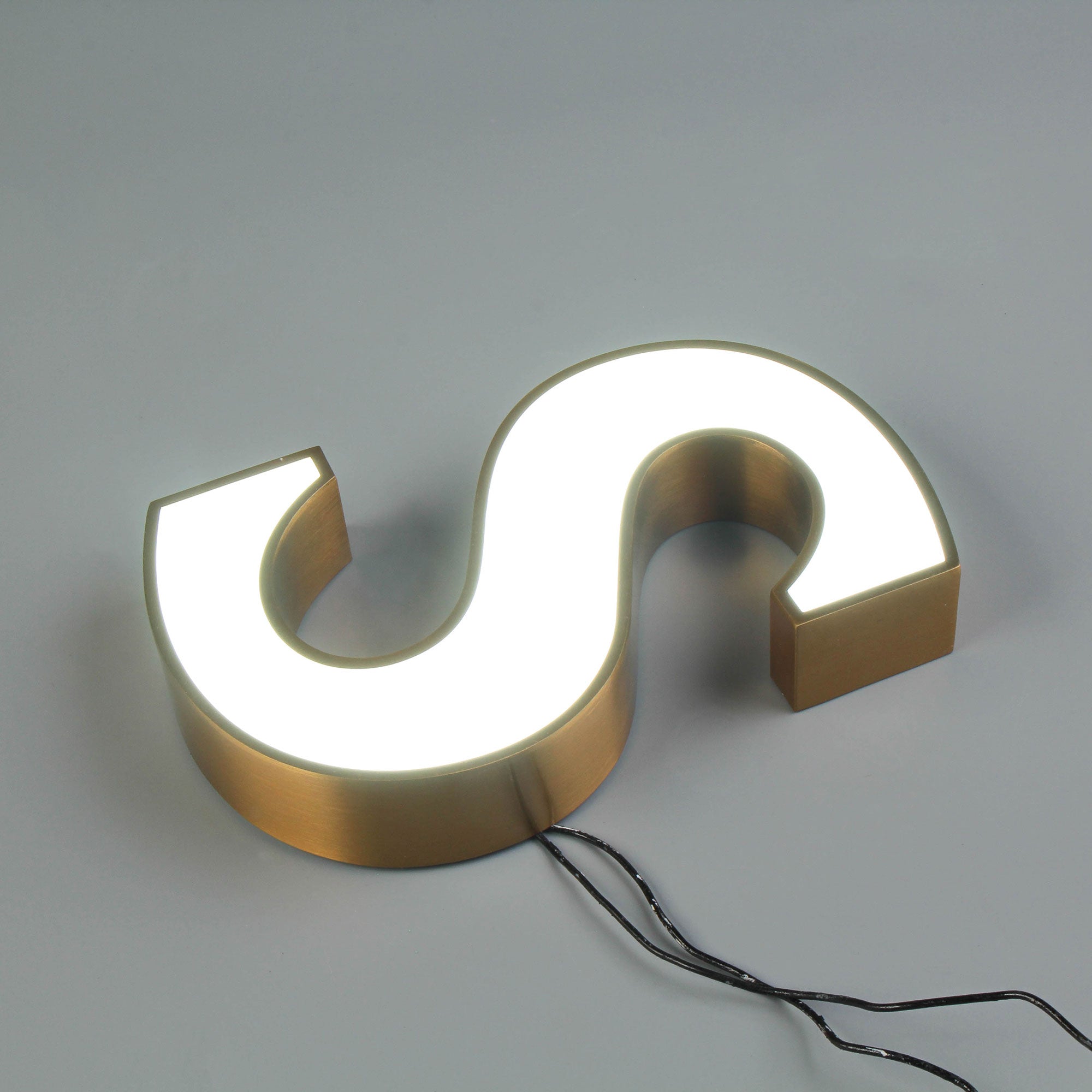

Front-lit Channel Letters with Trim Cap are a refined type of illuminated signage that blends traditional channel letter design with a trim cap for a sleek, polished appearance. Constructed from stainless steel channel letters, an acrylic face, and LED lights inside, these signs offer both durability and style. The stainless steel frame is available in polished or brushed finishes, while the acrylic face can be clear, frosted, or opaque（不透明）, each offering distinct lighting effects. The LED illumination is energy-efficient, providing 24/7 visibility with customizable color options (e.g., white, red, blue) to suit your brand’s identity. The frame comes in black or white, and the raised 3D letters add depth and prominence, enhancing visibility. Fonts and sizes can be tailored to match your branding needs. Built to withstand the elements, the metal frame and LED components are weather-resistant, making them ideal for outdoor use in varying conditions like rain, snow, and UV exposure.

Front-lit channel letters with trim caps are an excellent choice for businesses that want a combination of visibility, professionalism, and durability in their signage. These signs are particularly effective for high-traffic areas and locations that need to be visible both day and night. The trim cap not only enhances the aesthetic appeal by providing a finished edge but also contributes to the longevity and protection of the signage, ensuring it remains in great condition for years.

Production Process

1. Design & Layout – Create vector artwork according to required font, size, and style.

2. Laser Cutting – Precisely cut stainless steel/aluminum sheet for letter faces and sides.

3. Forming & Welding – Bend and weld the returns (side walls) to the face frame.

4. Surface Treatment – Apply brushing, polishing, painting, or plating as per specification.

5. Acrylic Face Cutting – Cut acrylic to size and treat edges for a smooth finish.

6. Trim Cap Installation – Secure trim cap around acrylic edges and attach to letter frame.

7. LED Lighting Installation – Install waterproof LED modules inside, route wiring neatly.

8. Back Panel Assembly – Fix back panel for sealing and mounting.

9. Cleaning & Detail Check – Remove dust, fingerprints, and surface residue.

10. Lighting Test – Power on each letter to check brightness, color, and uniformity.

11. Final Inspection – Verify dimensions, finish quality, and electrical safety.

12. Packaging – Wrap letters in protective film, add foam padding, and place in custom cartons or wooden crates for safe transport.

Custom Options

· Fonts, shapes, and logos in any style or size

· Acrylic face in solid, translucent, or printed graphics

· Wide range of acrylic face colors and LED light effects (warm white, cool white, RGB, programmable)

· Multiple mounting options: raceway, flush, or standoff

· Outdoor or indoor specifications with waterproofing as required

  Specifications:

Benefits of Front-Lit Channel Letters with Trim Cap:
1) Highly Visible: These signs are especially effective at night because the light is projected directly through the front of the letter, making it easier for people to see from a distance. The trim cap accentuates the edges, further enhancing visibility.
2) Professional Appearance: The trim cap creates a finished, polished look that improves the overall appearance of the sign. It helps to hide any raw or unsightly edges, providing a clean and well-crafted sign.
3) Energy-Efficient: LEDs are highly energy-efficient compared to traditional lighting sources like neon, and they produce less heat, making them ideal for signs that are illuminated for long periods.
4) Durability: Front-lit channel letters with trim caps are designed to be durable and resistant to the elements, making them suitable for both indoor and outdoor applications. The trim cap helps protect the edges of the letter, which can be particularly important in outdoor environments where exposure to rain, wind, and sun is a concern.
5) Customizable: These signs can be fully customized to suit the needs of any business. From the color and size of the letters to the choice of trim cap material, there's a lot of flexibility in design.
6) Low Maintenance: The LEDs used in front-lit signs have a long lifespan (typically 50,000 hours or more), and the trim cap helps protect the internal components, reducing maintenance requirements.
